Pioneer TS-A1702C 6.75-Inch A-Series 230-Watt Component Speaker Package

Pioneer TS-A1702C 6.75-Inch A-Series 230-Watt Component Speaker Package Review

Pioneer TS-A1702C 6.75-Inch A-Series 230-Watt Component Speaker Package Feature

• 6.75-inch component system with 230 watts maximum power handling (50 watts nominal)
• Woofers feature composite IMPP cone with interlaced aramid fiber and butyl rubber surround
• 7/8-inch soft-dome tweeters with magnetic fluid and neodymium magnet
• Outboard crossover with -12dB/octave low- and high-pass filter
• Surface, flush, or invisible tweeter mounting

This 6-3/4-inch component system from Pioneer delivers 230 Watts of maximum power (50 Watts nominal), and offers the flexibility and improved soundstage of a component installation. The IMPP woofer cone design provides the rigidity required for powerful bass. The soft-dome tweeters can be flush- or surface-mounted, and can be swiveled to suit the listening environment once installed. The included crossovers ensure a smooth response from both speakers.

Pioneer's A-Series Speakers Pioneer A-series speakers outperform factory speakers on nearly every level. Packing a powerful punch, A-Series speakers are equipped with up to three independent tweeters with reinforced woofers, so every beat is heard and felt. Featuring a bigger, better cone than most OEM speakers, the A-series boasts serious output and booming bass. Extra-sensitive tweeters play at higher frequencies and are capable of handling stronger audio signals, resulting in vocals that are crisp and clear, even when you crank the volume.

---

TS-A1702C Features Composite IMPP Cone with Interlaced Aramid Fiber With long aramid fibers interlacing together inside, this IMPP cone design provides the strength and rigidity that powerful bass sound requires. High-density compressed internal architecture is resilient, stacks up against high power well and transfers sound quickly. The result is full-bodied, rich sound character with midrange depth that conventional IMPP cones cannot match. Butyl Rubber Surrounds Durable butyl rubber speaker surrounds won't fall apart under the stress of extreme temperatures, sunlight or time, and help Pioneer's woofers deliver serious bass. Solid Construction A-Series speakers are easy to install and built to last. From rock-solid cone construction to a heavy-duty, ultra-thick, stamped steel basket, these drivers are ready to handle booming bass and high volumes with ease. High-Quality Crossover The External -12dB/Octave HPF and LPF crossover improves the transition from mid to high frequency, for a smoother mid-range to tweeter response. Audiophile-grade capacitors and inductors are used, and all components are encased in a clear acrylic cover for protection. Fits 6"x8" Applications The included 6"x8" adapter allows this component set to also be used in many Ford and Mazda vehicles that feature a 6"x8" speaker application size.

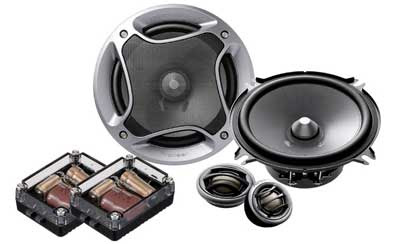

A complete component system with 230 watts power handling. Click to enlarge.

---

TS-A1702C Specs

Woofer Cone Material:	Composite IMPP Cone with Interlaced Aramid Fiber
Surround:	Butyl Rubber for Smoother Response
Voice Coil Bobbin:	Glass-Imide
Voice Coil Wire:	OFC Copper
Damper:	Aramid Fiber
Tweeter:	7/8" Soft Dome with Magnetic Fluid and Neodymium Magnet
Basket Design:	Full Depth Basket for Rich Bass Response
Built-in Passive Crossover:	Outboard Crossover with -12dB/Oct. LPF/HPF
Speaker Grille:	Included
Watts MAX. Music Power:	230 Watts
Watts Nominal Power Handling:	50 watts
Frequency Response:	31 Hz to 35 kHz
Sensitivity (1W/1m):	90 dB
Ohm Rating:	4
Mounting Depth:	2-1/2" (62.5 mm)
Cut-out Dimensions:	5-1/2" (139 mm)

---

Pioneer Car Audio Systems

Pioneer's Mobile Business Group is known for offering the kind of in-car products that make driving more enjoyable by offering high quality audio and video, seamless connectivity and ease-of-use. Its focus is on the development of new digital technologies including audio video, navigation and satellite radio, while maintaining its strong heritage in products for car audio enthusiasts and sound competitors.

---

What's in the Box

Pioneer TS-A1702C Component Speaker Package (Two Woofers, Two Tweeters, Two Crossovers), Mounting Hardware, Installation Guide Pioneer Ts-A1702C 6.5-Inch A-Series 250-Watt Component Package
